A lot that looks flat from the street can hide a four-foot drop in the back yard. An architect who designs without knowing that drop is guessing. A topographic survey removes the guesswork before a single wall gets drawn.
Site Feasibility Gets Decided Before the First Sketch

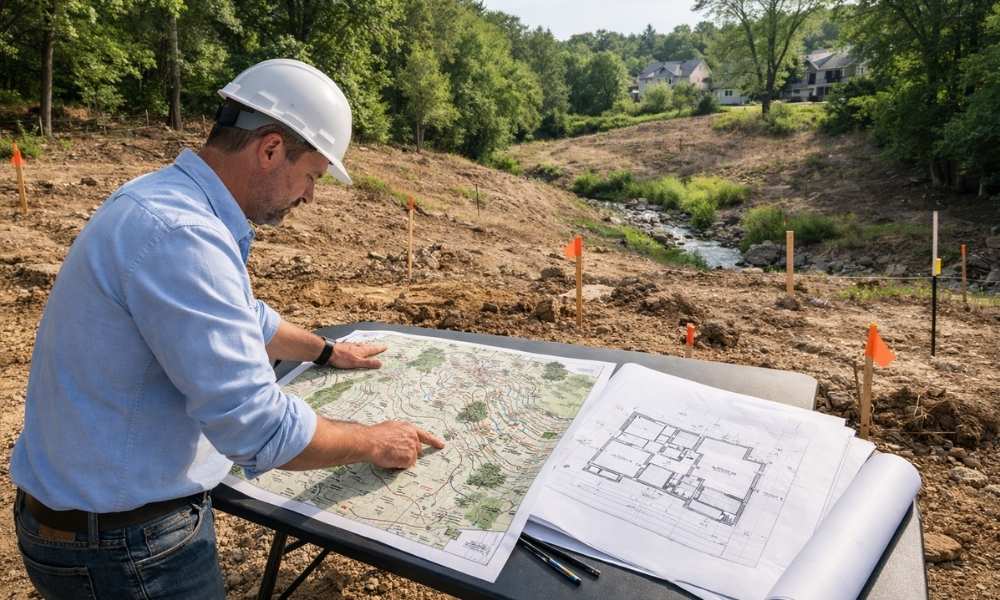

Before an architect draws a floor plan, they need to know if the design will fit the land. A topo survey shows the real shape of the ground: high points, low points, slopes, and the paths water naturally follows. Without this data, an architect is working off assumptions, and assumptions lead to redesigns.
Say a client wants a walkout basement. That only works if the ground drops enough at the back of the lot. A topo survey tells the architect right away if that drop exists, and how steep it is. If it doesn’t, the architect can change direction before spending weeks on drawings that won’t hold up.
This is the real point of ordering a topo survey early. It turns a guess into a fact. The architect can then sketch a design that matches the actual land, not an imagined version of it.
Wisconsin’s 48-Inch Frost Depth Rule Starts With Elevation Data
Wisconsin winters freeze the ground deep. The state’s Uniform Dwelling Code, under SPS 321.16, requires footings to sit below the frost line or at least 48 inches under the finished grade, whichever is deeper. That’s one of the deepest frost-depth rules in the country.
An architect can’t calculate footing depth without knowing the true grade of the site. A topo survey gives the starting elevation at every corner of the planned building footprint. From there, the architect and structural engineer can figure out how deep the footings need to go, and how much excavation and concrete that will take.
Skip this step, and the foundation budget is a guess. On a large footprint, a few extra feet of excavation at every footing adds up fast.
Meeting Local Stormwater and Drainage Ordinances
Water has to go somewhere. Wisconsin cities and villages set rules for where it can and can’t go. For projects that disturb one acre or more of land, the Wisconsin DNR also requires separate stormwater permit coverage under NR 216, and the landowner must file a Notice of Intent before work starts.
An architect builds the grading and drainage plan using the contour lines from a topo survey. Those contours show which way water moves across the site right now, before any construction changes it. The architect uses that to route roof runoff, driveway runoff, and yard runoff away from neighboring lots and toward approved drainage points.
Without accurate contours, a drainage plan is a design dressed up as a guess. Municipal reviewers catch these gaps fast, and the project gets sent back. A topo survey done early avoids that back and forth with the local building department.
Designing Around Trees, Wetlands, and Natural Buffers
Not every part of a lot can be built on. Wisconsin has shoreland and wetland setback rules that limit construction near lakes, streams, and wetland areas. A topo survey that includes tree locations and wetland flags shows an architect exactly where those limits fall on the property.
This matters early, not late. An architect who designs a building footprint without this information might place a structure too close to a wetland boundary, or right on top of a mature tree worth keeping. Moving a building after the design is finished costs time and money. Moving it on paper, before construction starts, costs almost nothing.
A topo survey done right flags these features so the architect can work around them from the first draft.
How Skipping a Topo Survey Leads to Change Orders Mid-Permit
Municipal building departments review site plans closely. If an architect submits a design based on assumed elevations, a plan reviewer or civil engineer usually catches the mismatch once real grade data comes into play.
At that point, the project stalls. The architect has to revise the site plan, resubmit it, and wait for another review cycle. Contractors on standby lose scheduled time. Owners pay for the delay. A change order caused by bad elevation data almost always costs more than the survey would have.
Ordering the topo survey before design work begins is the cheaper path. It costs far less to get accurate ground data upfront than to rework a design that was built on a guess.
